Description

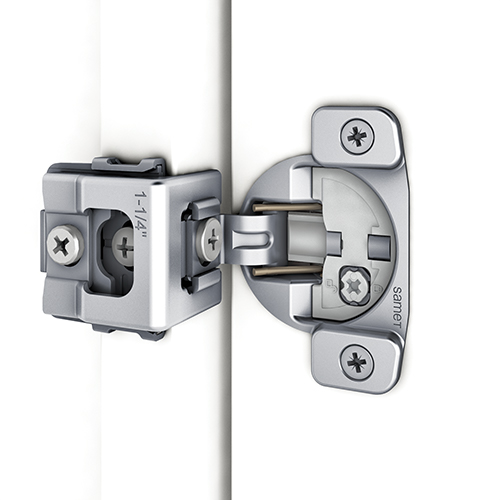

The SUPREME Soft-close Concealed Hinge is a new generation SAMET Face Frame Hinge Systems product which ensures slow and silent closure of face frame furniture doors. Integrated soft-close mechanism completes aesthetic and minimalist design of the hinge and customized by user switch on and switch off position. High-engineered track mechanism allows all user to assemble and disassemble of the door to cabinet easily. 6-way adjustment options brings better precision for furniture. Doors can be adjusted quickly in six directions.

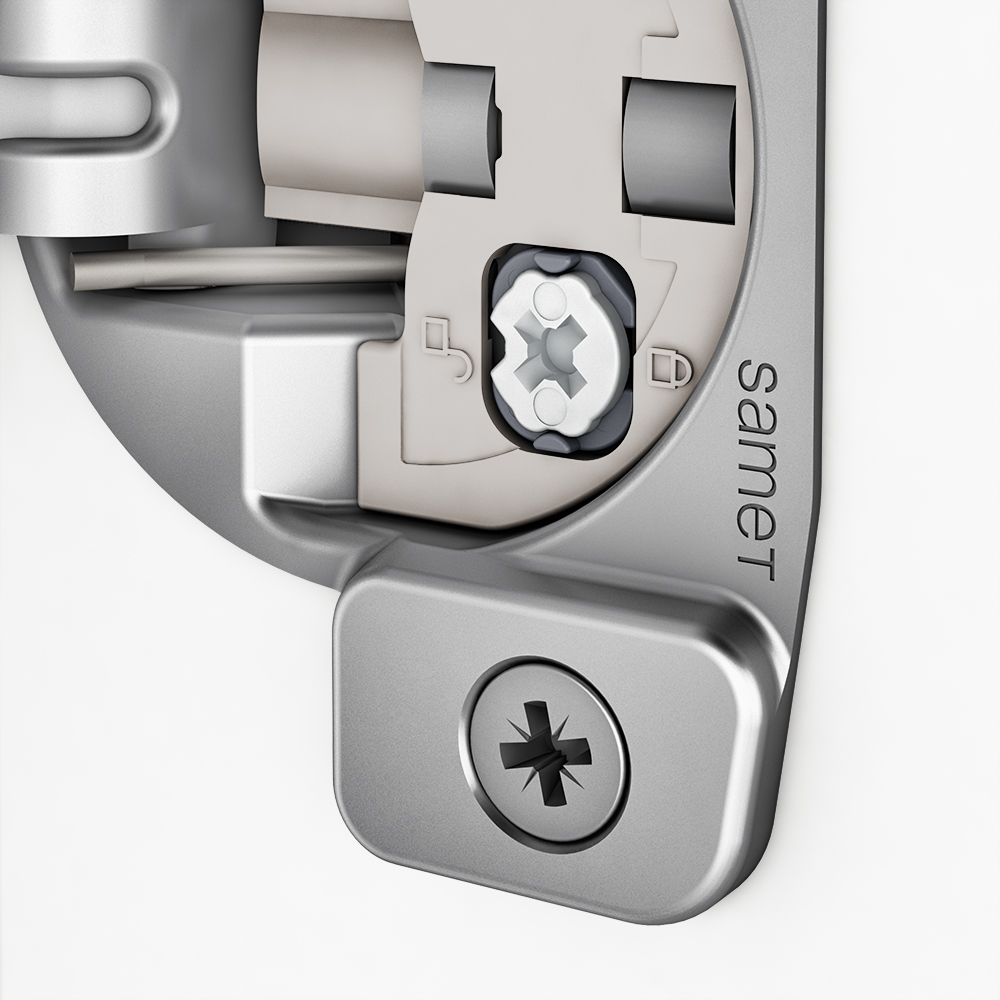

Integrated On-Off Soft-Close System
The Supreme Soft-Close Face Frame Hinges brings great slow and silent closing performance for face frame furniture doors. Integrated soft-close mechanism completes aesthetic and minimalist design of the hinge with its position in hinge cup. Supreme hinge soft-close system may be switched on and switched off by all type users. Switching of soft-close mechanism ensures perfect closing performance for every type light, small, heavy doors. End users easily manage their door closing performance and all manufacturers use just one type hinge for all type of doors and customize according their furniture needs by on-off soft-close system.

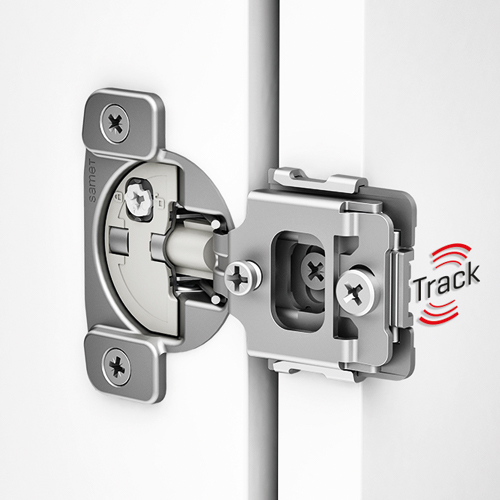

Easy Assembly and Disassembly with Track Mechanism
The Supreme Soft-Close Face Frame Hinges serves fast and easy tool-free assembly and disassembly of furniture doors to face frame cabinets for all type users. There is no need any tool for assembly of door to face frame cabinets and also no need any tool for disassembly. Single touch by hands will assemble doors to face frame cabinets. It brings great benefit for manufacturer by saving time and energy. It also provides opportunity to end users for assembling and disassembling of the doors whenever it needs.
Technical Features
- 1-1/4” and 1/2” overlay options
- 105° opening angle
- Ø35 mm cup diameter
- 45 mm cup axis
- Ø8 mm dowelled and screw-on mounting options
- Package: 200 units
- Coating: Nickel
- The height, side and depth adjustment options in 6-way
